| Place of Origin: | China |
|---|---|
| Brand Name: | CAMEL |
| Certification: | ISO9001, ISO14001, ISO45001, ISO50001 |
| Model Number: | PES200-A01 |
| Minimum Order Quantity: | 20FT |
| Packaging Details: | Packing box, carton, pallet |
| Delivery Time: | 30 Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 38 millions' units per year |
| Name: | Camel Brand 230Wh PES200 Portable Power Station | Item: | Portable Energy Storage System |
|---|---|---|---|
| Battery Type: | LiFePo4 | Applications: | House Emergency Power Supply, Camping, Outdoor Activity |
| Function: | Power Storage, Power Supply | OEM: | Available，Acceptable |
| Total Capacity: | 230.88Wh | Cell Capacity: | 2600mAh |
| Highlight: | 2600mAh lithium portable power station,230Wh lithium portable power station,Camel battery power source for camping |
||

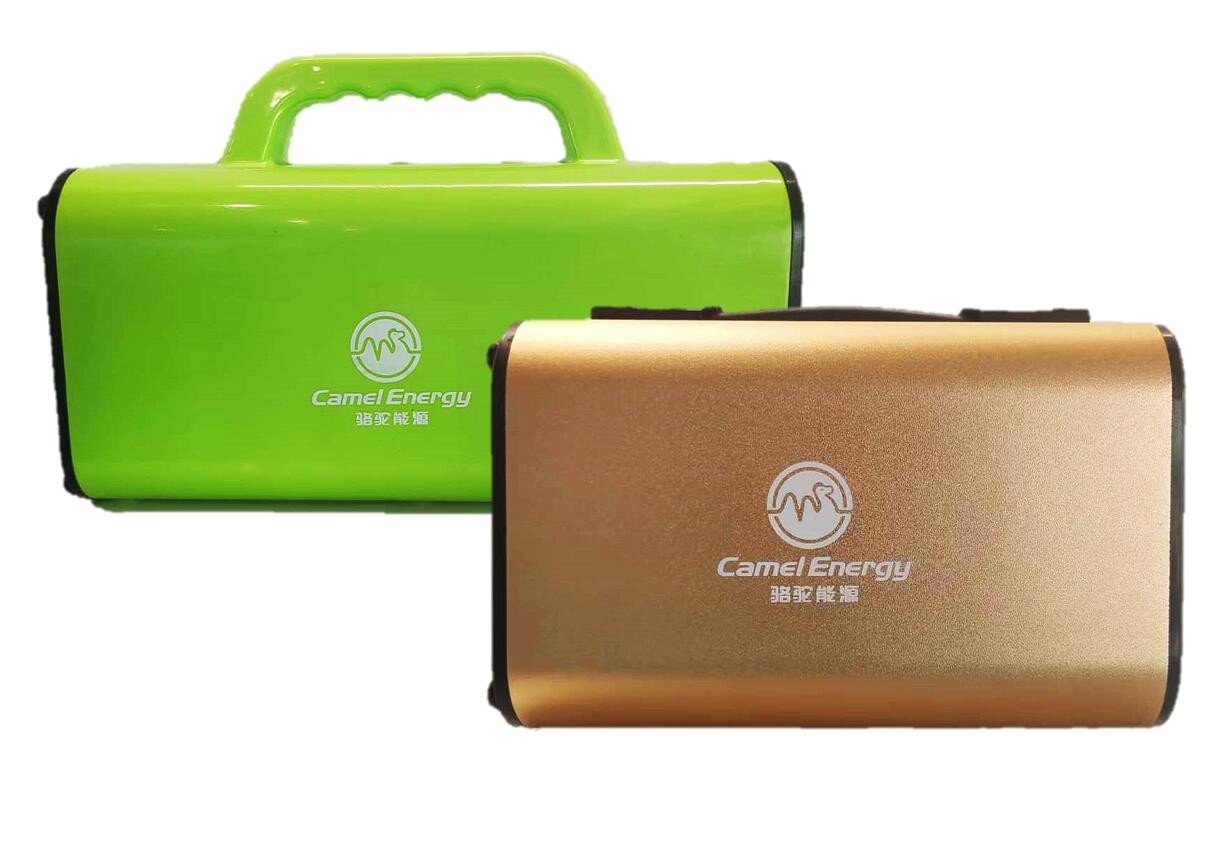

Camel Brand 230Wh PES200 Portable Power Station
Whether you’re looking for a backup of mergencies, power for the tools on the job site, or the electricity to keep the electronics up and running on a travel, you can trust Camel portable power station. This power station is portable, powerful, reliable and cost saving. What's more, it's wear resistant for the long journey trip. With it, the only thing you need to do is to enjoy the life and work.
Product Features
Wear Resistant
Non inflammable material for housing, robust resistance to fall and wear
Quiet Operation
Intelligent temperature control and effectively heat dissipation, quiet operation
Safe
Overcharging and over discharging protection, better guarantee the safety of product
Convenient
Smaller volume, product is easy to take
Product Model
| Total Capacity | 230.88Wh |
|---|---|
| Cell Capacity | 2600mAh |
| Total Battery Cells | 24 pcs |
| Inverter (Simulated/Pure Sine Ware) | Pure Sine Wave |
| Inverter(Max Output Power) | 200W |
| Inverter(Voltage) | 110V |
| Output Port(AC) | *1 |
| Output Port(USB-A) | 3* (5V/6A) |
| Output Port(USB-C) | 60W Max |
| Output Port(12V Car Port) | 10A Max |
| Output Port(12V DC(5.5mm)) | Adaptor |
| Input Port(DC5.5mm) | 18V 2A PSU |
| Input Port(12V Car Charge) | 2A |
| Input Port(Solar Charge) | 12V ~ 24V (min 10W) |
| Input Port(USB-C) | PD |
Applications
Live-streaming, Outdoor exploration, Photography interviews, Mobile office, Outdoor camping, RV travel, Engineering construction, Tool power supply, Medical treatment, Fire rescue etc.
About Camel
Founded in 1980, Camel Group Co., Ltd.(Stock No: SH601311) is specialized in the R&D, production and sales of lead-acid batteries, with the production of EV lithium-ion battery and used battery recycling as the supplement. Camel is the largest and leading car battery manufacturer in Asia.
Currently, Camel has four major brands, which are CAMEL, HUAZHONG, SWAN, DF. With over 400 types of products covering automotive starter battery, start-stop battery, lithium-ion battery, traction battery, etc. Camel batteries are widely used in cars, trucks, agricultural vehicles, golf carts, electric vehicles and other applications.
The core competitiveness of Camel Group stems from continuous independent innovation, clear development strategy and efficient execution, which are all based on having an enterprising and innovative management and technical team. To ensure the technological leadership in the industry, Camel has continuously increased R&D investment and introduced the world's leading automatic production lines, and advanced R&D and testing devices. The professional R&D institute under the company is recognized as state-level enterprise technology center. Camel also has academician expert workstation and state-level laboratory. As a high-tech enterprise supported by the state, Camel has entered the field of new energy vehicle prospectively, committed to green energy manufacturing and recycling, and opening a low-carbon life for mankind.
FAQ
1. Why the electrolyte temperature is too high? How to deal with it?
A: The high temperature of electrolyte after acid filling of new batteries is due to the neutralization reaction between the acid and the oxidized negative plates, which will generate lots of heat. During this period, charging should start when the electrolyte temperature drops to about 40 ℃, or charge the battery with low current.
During normal charging process, if electrolyte temperature is high or even exceeds 45℃, cooling measures should be taken, or adjust the charging current to a low value. If temperature shows no decrease, possibility of battery internal short circuit or plate’s sulfation should be considered.
During normal usage of battery, if the temperature is too high. There are two possibilities to this: one is because the surrounding ambient temperature is too high, and the heat generated by battery is not easy to dissipate. The other is that the charging voltage or current is too high.
2. How to deal with abnormal charging?
A: When recharge a normal battery, no massive bubbles(gas) would be generated at the primary charging period, since the current charged only serves for the electrochemical reaction of active mass. While at the end of charging period, along with the completion of electrochemical reaction, current charged begins to electrolyze water, and degases hydrogen and oxygen.
When recharge the battery after usage, if only little gas is generated at the end charging period, it may be because the charging current is too low or battery is still not fully charged. If one single cell shows no gas generation during battery charging, this may indicate internal short circuit. If the whole battery produces too much gas and too early, this indicates the possibility of plates sulfation, which should be treated with repeated discharge and charge processes. If the battery produces gas in resting period or discharge process, it may be caused by much impurities in electrolyte.
