| Place of Origin: | China |
|---|---|
| Brand Name: | CAMEL |
| Certification: | ISO9001, ISO14001, ISO45001, ISO50001 |
| Model Number: | LV5200 |
| Minimum Order Quantity: | 20FT |
| Packaging Details: | Packing box, carton, pallet |
| Delivery Time: | 30 Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 38 millions' units per year |
| Product Name: | Household Energy Storage System | Item Name: | Residential Energy Storage System |
|---|---|---|---|
| Material: | LiFePo4 Battery, Inverter, PV Panel | Usage: | Household Energy Storage |
| Function: | Solar Energy Storage, Power Supply | OEM: | Available，Acceptable |
| Type: | Battery Pack | Inverter Type: | Pure Sine Wave |
| High Light: | Solar Residential Energy Storage System odm,ISO9001 Residential Energy Storage System LiFePo4,5kwh solar energy storage battery |
||

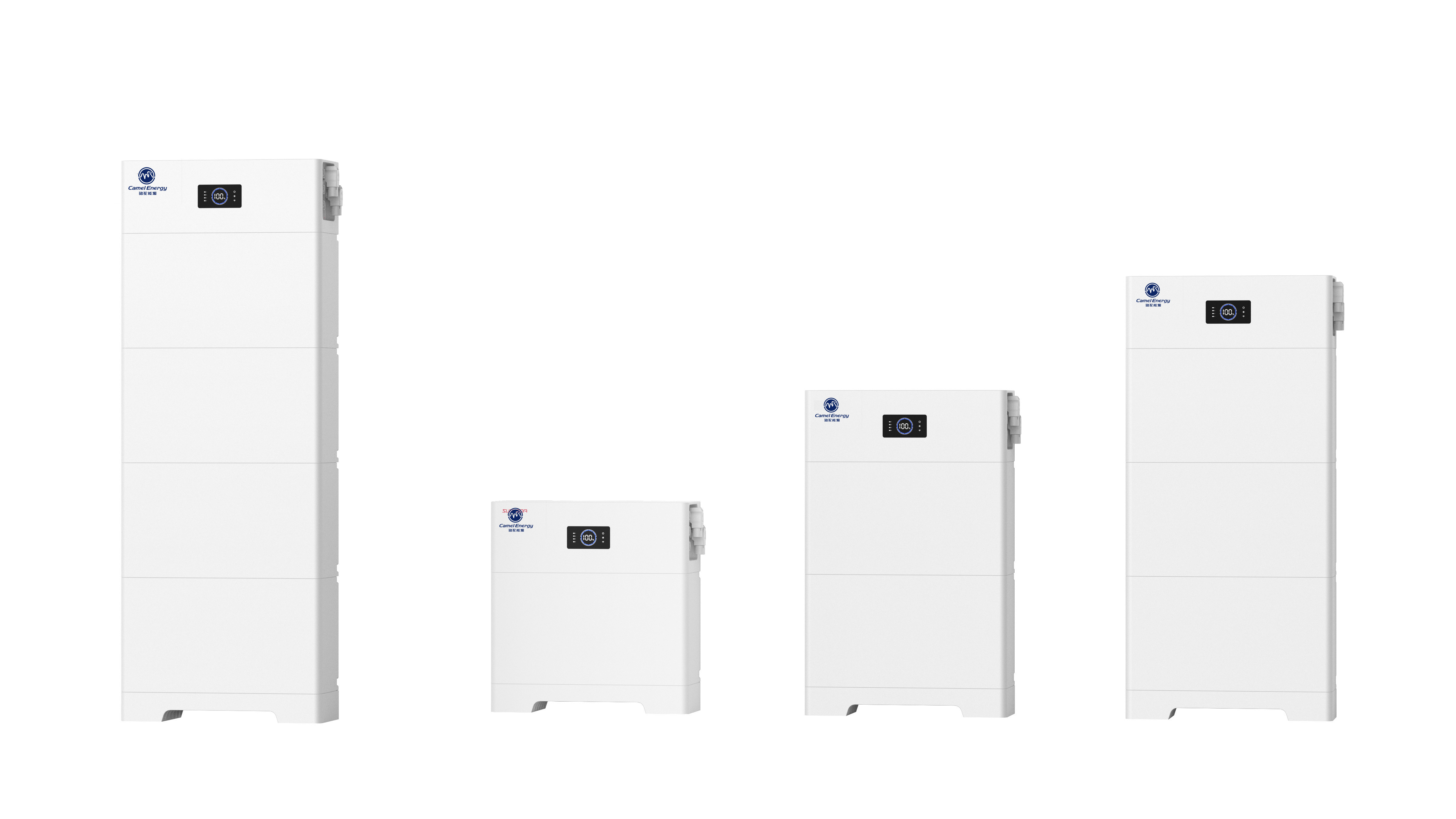

Renewable Household Back-up Power LiFePo4 Battery Pack 5KWH On-grid off-grid Solar Energy Storage System
The lithium-ion home energy storage system efficiently integrates the battery system, inverter, BMS, and EMS into one, maximizing the use of clean and economical renewable energy, allowing your home to enjoy an all-weather uninterrupted green power supply. Connect to the exclusive APP, and the power consumption of the home can be seen at a glance. Through the mobile app, you can control how much electricity you use, how much electricity you spend, and how much electricity you want to save.
Product Features
Economic and Clean
The household energy storage system uses clean solar energy for an uninterrupted 24 hours power supply
Flexible Investment
The Camel LiFePo4 home energy storage system adopts the stackable module design, and easily extends 5kWh per module, from 5 to 40kWh
Easy Installation
Stacked installation, 1-2 person installation, save installation time and cost
Autonomous
The on-grid or off-grid operation: is ideal for various application scenarios.
Cloud Control
Cloud compatible control, you can manage your energy anytime, anywhere. User-friendly interface
Intelligent monitoring, Smart power grids, and Better PV utilization.
Safe & Reliable
Global First-Tier Brand LFP Cell
Product Model
| Model | LV5200-5 | LV5200-10 | LV5200-15 | LV5200-20 | LV5200-25 | LV5200-30 | LV5200-35 | LV5200-40 | |
| Number of Parallel | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | |
| Rated Power(kWh) | 5.12 | 10.24 | 15.36 | 20.48 | 25.6 | 30.72 | 35.84 | 40.96 | |
| Rated Voltage(V) | 51.2 | ||||||||
| Charge/Discharge cut off Voltage(V) | 46.4~55.2 | ||||||||
| Rated Charge/Discharge Current(A) | 50/50 | 100/100 | 150/150 | 200/200 | 200/200 | 200/200 | 200/200 | 200/200 | |
| Max. Charge/Discharge Current(A) | 50/100 | 100/200 | 150/200 | 200/200 | 200/200 | 200/200 | 200/200 | 200/200 | |
| Communication Interface | CAN 2.0 / RS485 | ||||||||
| Protection Features |
Charging overvoltage protection, discharge under –voltage protection, over current protection, over temperature protection ,short circuit protection, etc. |
||||||||
| Protection Level | IP20/IP65 | ||||||||
| Altitude | <2000m | ||||||||
| Weight(kg) | 45 | 90 | 135 | 180 | 225 | 270 | 315 | 360 | |
| Operating Temperature Range | Charge:0~50℃；Discharge:-10℃~50℃ | ||||||||
| Storage Temperature Range | -20℃~50℃ | ||||||||
| Humidity Range | 10%~95%,non condensation | ||||||||
| Size(W*H*D,mm) | 482*135*433/PACK | ||||||||
| Safety | UL1973/IEC62619 | ||||||||
| Transport | UN38.3 | ||||||||
Applications
With an intelligent and all-in-one design concept, residential energy storage is integrated with solar power systems, Lithium-ion battery energy storage systems, and home energy management. Our flexible and efficient residential energy storage system can expand on-demand and be monitored running status via the APP anywhere. Smart and safe, with rapid installation, and easy operation, RESS is friendly for home users to build a clean, independent, and economic micro-grid.
About Camel
Founded in 1980, Camel Group Co., Ltd.(Stock No: SH601311) is specialized in the R&D, production and sales of lead-acid batteries, with the production of EV lithium-ion battery and used battery recycling as the supplement. Camel is the largest and leading car battery manufacturer in Asia.
Currently, Camel has four major brands, which are CAMEL, HUAZHONG, SWAN, DF. With over 400 types of products covering automotive starter battery, start-stop battery, lithium-ion battery, traction battery, etc. Camel batteries are widely used in cars, trucks, agricultural vehicles, golf carts, electric vehicles and other applications.
The core competitiveness of Camel Group stems from continuous independent innovation, clear development strategy and efficient execution, which are all based on having an enterprising and innovative management and technical team. To ensure the technological leadership in the industry, Camel has continuously increased R&D investment and introduced the world's leading automatic production lines, and advanced R&D and testing devices. The professional R&D institute under the company is recognized as state-level enterprise technology center. Camel also has academician expert workstation and state-level laboratory. As a high-tech enterprise supported by the state, Camel has entered the field of new energy vehicle prospectively, committed to green energy manufacturing and recycling, and opening a low-carbon life for mankind.
FAQ
1. Why is there a possible battery explosion? And how do we prevent it?
A: A lot of hydrogen and oxygen will be produced during the charging process of battery. When the concentration of the mixed gas reaches 4% in the air, if sparks generated due to loose wire connection or open fire from outside interferes, there is a possibility that explosion may occur, which will damage the battery or even injure people and things. Preventions are as below:
a. Control the power charged, avoid overcharge, to reduce the amount of gas degassed.
b. No open fire near the batteries during charging process and keep good ventilation.
c. During charging, the connection should be firm to avoid sparks due to loose connection.
d. Adopts constant current and limited voltage charging method, which generates less gas evolution.
e. Prevent sparks or even fire and explosion due to short circuit.
f. Keep the degassing hole unobstructed for the maintenance-free sealed batteries, otherwise, the increased internal pressure may accumulate too high to cause bulge or even explosion.
2. Why the capacity is decreased?
A: If battery shows insufficient capacity during usage, or capacity cannot meet rated capacity value, we should firstly consider the possibility of insufficient charge or insufficient recharge after usage. Check if the electrolyte density is too low, of if the electrolyte level increases after recharge.
a. Sulfation (over-charge, repeated charge, hydrotherapy for desulfurization)
b. Pollution of electrolyte (after multiple flushing with distilled water, change the electrolyte)
c. Whether batteries show partial short circuit.
d. Phenomena like grid corrosion, plate breakage, active mass shedding etc. at the end of service life.
